Power Up Your Home: The Essential Guide to Your Electrical Panel

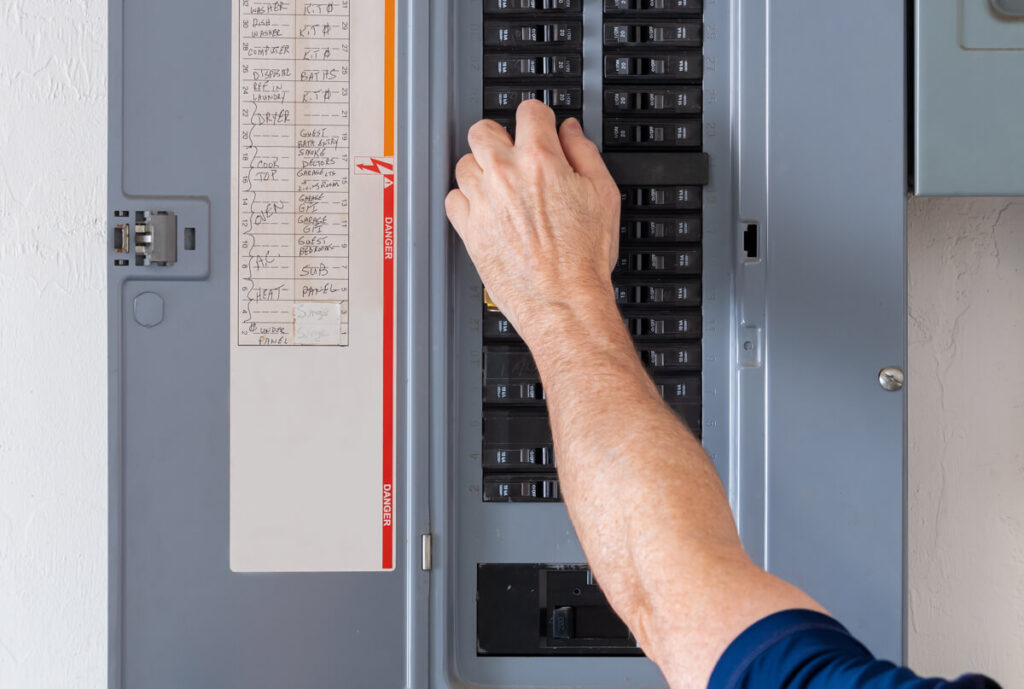

Your electrical panel, often called your breaker box, is the heart of your home’s electrical system. It’s the silent workhorse that manages all the electricity flowing into your house. But as our homes fill with more electronics, appliances, and smart devices, many older electrical panels are struggling to keep up.
Upgrading your electrical service panel might not be the most glamorous home improvement project, but it is one of the most important for both safety and convenience. So, how do you know if it’s time for an upgrade?
A typical home electrical panel, also known as a breaker box, usually lasts for 25 to 40 years, with some lasting up to 50 years.
- Age: Older panels (especially those from the 1950s-1980s) may not be able to handle the increased electrical demands of modern appliances and technology.
- Brand: Certain brands, such as Federal Pacific Electric (FPE), Zinsco, and Sylvania, have known safety issues and may need to be replaced sooner.
- Physical condition: Signs of damage, such as rust, corrosion, scorch marks, or a burning smell, are major red flags that indicate an immediate need for replacement.
- Performance: Frequent circuit breaker trips, flickering lights, and buzzing sounds from the panel can all be signs that your electrical system is overloaded or has an underlying issue.
It’s always a good idea to have an electrician inspect your electrical panel if you have concerns, especially if your home is more than 20-30 years old. An inspection can help determine if the panel is safe and capable of meeting your home’s electrical needs.
Whats the diffrence between a fuse box and a breaker panel?
The key difference between a fuse panel and a breaker panel is how they protect your home’s electrical circuits from an overload or a short circuit. A fuse panel uses fuses that are designed for one-time use and must be replaced after they “blow.” A breaker panel uses circuit breakers that can be reset and reused after they “trip.”
How They Work
A fuse panel contains fuses, which are small, cylindrical or screw-in devices with a thin metal strip inside. When too much current flows through a circuit, the metal strip in the fuse heats up, melts, and breaks the circuit, stopping the flow of electricity. This is what’s known as a “blown fuse.” To restore power, the blown fuse must be completely replaced with a new one of the correct amperage.
A breaker panel contains circuit breakers, which are switches that automatically “trip” or shut off when an electrical overload or short circuit is detected. When a breaker trips, you can simply flip the switch back to the “on” position to restore power. The breaker’s internal mechanism, often a bimetallic strip or an electromagnet, is designed to detect the excessive current and trigger the switch to turn off.
Key Differences
- Functionality: Fuses are a one-time use device, while circuit breakers are reusable.
- Convenience: Resetting a breaker is much easier and faster than locating and replacing a blown fuse.
- Safety: Circuit breakers are generally considered safer and more reliable. Older fuse panels may have exposed wiring, and the common practice of “overfusing” (installing a fuse with a higher amperage than the circuit is rated for) can create a serious fire hazard.
- Modern Features: Modern breaker panels include advanced safety features like Ground Fault Circuit Interrupters (GFCIs) and Arc-Fault Circuit Interrupters (AFCIs), which are required by current electrical codes and are not available in fuse panels.
- Capacity: Fuse panels typically have a lower amperage capacity (e.g., 60 amps), which is often insufficient for the electrical demands of a modern home with multiple high-power appliances, while breaker panels can handle higher loads (e.g., 100-200 amps).
5 Signs Your Electrical Panel Needs Attention
1. The Proliferation of Electronics and Appliances
Fifty years ago, a typical home’s electrical load was relatively modest. Standard appliances included a refrigerator, a few light bulbs, a television, and perhaps a clothes washer and dryer. Today, that list has exploded to include: Computers and Home Office Equipment: Desktops, laptops, printers, and multiple monitors.
- Entertainment Systems: Multiple TVs, gaming consoles, streaming devices, sound systems, and charging stations for phones and tablets.
- Smart Home Technology: Smart thermostats, smart lighting, security cameras, smart speakers, and countless other connected devices that are always on and drawing power.
- Small Appliances: A huge variety of kitchen gadgets, from coffee makers and microwaves to air fryers and electric kettles, all adding to the total load.
2. The Rise of Air Conditioning
3. Larger Homes and More Light Fixtures
4. The Shift in How We Work and Live
5. Increased Amperage Needs
Ignoring a struggling electrical system isn’t just an inconvenience; it can be a serious safety hazard. Here are the top signs you should look for:
-
Frequently Tripping Breakers: If you’re constantly running to the breaker box to flip a switch back on, it’s a clear sign your system is overloaded. An overworked panel can lead to overheating and pose a serious fire risk.
-
Flickering or Dimming Lights: When your lights flicker or dim when a major appliance (like an air conditioner or microwave) kicks on, it means your electrical panel is not able to handle the power demand. This is a common issue in older homes that were not built for today’s energy needs.
-
Strange Noises or Smells: Any crackling, buzzing, or sizzling sounds coming from your breaker box is a major red flag. Similarly, if you ever smell burning plastic or wood near your panel, it indicates a serious problem like melting wires. If you notice any of these signs, contact a professional immediately.
-
Reliance on Power Strips & Extension Cords: If you have more devices than outlets, you may be putting too much strain on your circuits. An outdated panel with too few circuits can lead to a dangerous over-reliance on extension cords, which are a major fire hazard.
-
Outdated Panels or Fuse Boxes: If your home was built before the 1960s, you likely have an old fuse box instead of a modern breaker panel. Many of these older systems (including brands like Federal Pacific Electric) are considered outdated and unsafe by today’s standards. Upgrading to a modern breaker panel is a critical safety measure.
Will replacing the electrical panel fix breakers that constantly trip?
Common Causes of a Tripping Breaker
A tripping breaker is an alarm that something is wrong on a specific circuit. The most common reasons for a breaker to trip are:
- Overloaded Circuit: This is the most frequent cause. It happens when you have too many high-power appliances or devices drawing electricity from a single circuit at the same time. The circuit’s wiring can’t handle the excessive current, so the breaker trips to prevent overheating and a potential fire.
- Short Circuit: This is a serious issue. It occurs when a “hot” wire touches a “neutral” wire, which creates a massive surge of current. The breaker trips instantly to stop this dangerous flow and prevent electrical damage or a fire.
- Ground Fault: Similar to a short circuit, a ground fault occurs when a hot wire touches a grounded surface, like a metal outlet box. This also causes an electrical surge, and the breaker trips to protect against the shock hazard.
- Faulty Appliance: Sometimes the problem isn’t the wiring at all, but a malfunctioning appliance plugged into the circuit. An old or damaged appliance may be drawing too much power, causing the breaker to trip.
When a New Panel Might Be Necessary
While a new panel doesn’t directly fix a tripping breaker, it may be the necessary solution if the breaker’s tripping is a symptom of a larger, systemic problem with the entire electrical system. Reasons to consider a new panel include:
- Outdated Panel: Older panels, especially those from brands with known issues (like Federal Pacific or Zinsco), may be unreliable and not trip when they’re supposed to. In this case, the tripping may be a sign of a dying or unsafe component, and a full replacement is the safest option.
- Low Amperage Capacity: Many older homes have 60-amp panels that can’t handle the electrical demands of modern life. If you’re constantly tripping breakers because your household’s total energy usage exceeds the panel’s capacity, an upgrade to a 100-amp or 200-amp panel may be required.
- Multiple Breakers Tripping: If you’re experiencing frequent tripping on multiple breakers across your home, it could be a sign that the entire electrical panel is aging, malfunctioning, or simply can’t keep up.
In summary, a tripping breaker is a sign of a problem, not the problem itself. Unless the tripping is caused by a faulty breaker or a panel that is too old or undersized, replacing the entire panel will not solve the issue. The first step is always to diagnose the underlying cause of the electrical fault.
The Benefits of an Upgrade
1. Safety
- Risk of “Over-fusing”: A major hazard with fuse panels is the temptation to install a fuse with a higher amperage than the circuit is designed for. This allows more current to flow than the wiring can handle, which can lead to overheating and a serious fire risk. A breaker panel prevents this by having non-interchangeable breakers with a fixed amperage rating.
- Outdated Technology: Fuse panels lack modern safety features required by current electrical codes. Breaker panels can be equipped with Arc-Fault Circuit Interrupters (AFCIs) and Ground-Fault Circuit Interrupters (GFCIs). AFCIs detect dangerous electrical arcs that can cause fires, while GFCIs protect against severe electric shock.
- Tampering and Damage: Fuse panels have exposed, energized parts that can be a shock hazard. Additionally, decades of use can cause the fuse contacts to corrode or the panel’s internal components to become brittle.
2. Convenience
Breaker panels are far more convenient and user-friendly than fuse panels.
- No Replacement Needed: When a circuit is overloaded, a breaker simply “trips,” cutting off power. To restore power, you just flip the switch back on. There is no need to find and replace a blown fuse, which can be difficult, especially if you do not have a spare on hand.
- Easy Troubleshooting: A tripped breaker is easy to spot on the panel. With fuses, you must manually inspect each one to find the blown fuse, which can be time-consuming.
3. Increased Capacity
- Higher Amperage: Many older fuse panels are limited to 60 amps, which is not enough to power modern appliances and electronics. A service panel upgrade to 100 or 200 amps provides the necessary capacity to run multiple high-power devices, such as air conditioning units, electric ovens, or even an electric vehicle charger, without tripping a breaker.
- More Circuits: Fuse panels have a limited number of circuits. A new breaker panel has more breaker slots, allowing you to add dedicated circuits for high-demand appliances, reducing the risk of overloads and improving overall system stability.
- Future-Proofing: The increased capacity and flexibility of a breaker panel prepares your home for future electrical needs, such as a home addition, a new workshop, or the adoption of new technologies like smart home systems or solar panels.
Sometimes it’s not the panel
Why Old Wiring is a Problem
- Deteriorating Insulation: The protective sheathing on wires, which prevents them from touching each other or other materials, can become brittle and crack with age. This exposes the bare, live wires, creating a high risk of short circuits and electrical fires.
- Outdated Materials: Many homes built before the 1980s used materials that are no longer considered safe.
- Aluminum wiring was common in homes from the 1960s to the 1970s. Aluminum expands and contracts more than copper when it heats up and cools down, which can loosen connections at outlets and switches. These loose connections can cause arcing and create a serious fire hazard.
- Knob-and-tube wiring, used in homes before the 1950s, lacks a ground wire and has insulation that can easily break down. It was never designed to handle the high electrical loads of modern appliances and is a fire risk if insulation is buried in modern thermal insulation.
- Inadequate Capacity: Old wiring simply doesn’t have the capacity to handle today’s electrical demands. The wires themselves are often thinner (smaller gauge) than what is required to safely power modern electronics and appliances, leading to circuits that are easily overloaded. This is what causes frequent tripping breakers, even with a new panel.
Signs You Have an Issue
Beyond a tripping breaker, here are other clear signs that your old wiring is a problem:
- Flickering or Dimming Lights: This can signal an overloaded circuit or loose connections, as the wiring struggles to supply a consistent voltage to fixtures.
- Buzzing or Sizzling Sounds: Hearing sounds from your walls, outlets, or switches is a serious red flag. This can indicate arcing or sparking behind the walls, which is a major fire risk.
- Burning Smells or Discoloration: If you smell a burning odor from an outlet or switch, or see any scorching or discoloration around it, it means the wiring is overheating and you need to call an electrician immediately.
- Two-Prong Outlets: The lack of a ground wire in old two-prong outlets is a safety hazard that increases the risk of electric shock and can damage sensitive electronics.
Pricing: What it costs:
Typical Cost Range
- Average Cost: The most common upgrade is from a 60-amp or 100-amp panel to a 200-amp service, which often averages around $1,200 to $2,000.
- Low End: A very straightforward replacement of a 100-amp panel with a new 100-amp panel, with no additional work, might cost as little as $1,200 to $1,500.
- High End: More complex projects can reach $4,000 or more.
Factors That Influence the Cost
Amperage Upgrade:
- The cost to replace a 60-amp or 100-amp panel with a 200-amp panel is higher because it requires more robust materials, and often, an upgrade of the service mast and meter socket.
- Labor: This is often the largest portion of the cost. Electricians in Iowa typically charge a flat fee for this type of job, but hourly rates can be anywhere from $50 to over $100 per hour, with the job often taking a full day.
- Materials: The panel itself can range from around $250 to $500 for a 200-amp panel. Other material costs include breakers (especially the more expensive GFCI and AFCI breakers), wiring, and other hardware.
- New Code Requirements: Modern electrical codes are very strict. An upgrade often requires additional work to bring your home’s system up to code, which can add to the cost. This might include installing an outdoor shut-off switch, new grounding rods, or upgrading wiring.
- Old Wiring: If your home has old aluminum or knob-and-tube wiring, the electrician may recommend a partial or full re-wire of the affected circuits, which can significantly increase the total cost.
- Panel Relocation: If the old panel is in a hard-to-access or non-compliant location, relocating it will add to the labor and material costs.
- A service panel upgrade is a major job that requires a permit from your local municipality to ensure the work is done safely and correctly. The cost of a permit can range from $50 to a few hundred dollars, and most electricians will handle this process for you and include it in their quote.
How to Get an Accurate Estimate
The best way to get a precise cost is to call a licensed electrician at T.A.P. Electric to get detailed quotes. We can inspect your current setup and give you a comprehensive breakdown of the costs for labor, materials, and any necessary additional work to bring your home’s electrical system up to modern safety standards.
1. The “Why” Behind the Upgrade
- Safety Concerns: Are you experiencing frequent breaker trips, flickering lights, or a burning smell? Do you have an old fuse panel or a known hazardous brand like Federal Pacific or Zinsco? This is a critical safety upgrade.
- Increased Power Needs: Are you adding a new appliance like an air conditioner, an electric vehicle charger, or a hot tub? Are you renovating or adding a new room? You’ll need a panel with a higher amperage rating to handle the new electrical load.
- Future-Proofing: Do you want to ensure your home’s electrical system can support future technology like solar panels, battery storage, or smart home automation? Upgrading to a 200-amp panel is a great way to prepare your home for the future.
2. Choosing the Right Amperage and Size
- Amperage: Most older homes have 60-100 amp panels. The current standard for new homes is 200 amps. For most modern households, a 200-amp panel is the best choice to meet current and future needs.
- Breaker Slots: A panel with more slots than you currently need gives you the flexibility to add new circuits down the line without another major upgrade.
3. Hiring a Qualified Electrician
This is not a DIY job. It involves high-voltage electricity and a high risk of injury or fire if done incorrectly.
- Licensing and Insurance: Ensure the electrician you hire is licensed, insured, and bonded. This protects you from liability and financial loss in case of an accident or improper work.
- Experience: Look for an electrician with specific experience in residential panel upgrades. They will be familiar with the process, from dealing with the utility company to understanding local codes. The electricians at T.A.P. Electric are experienced in working with high-voltage panels and are licensed and insured to handle any situation that may arise.
4. Understanding Permits and Inspections
- Why a Permit is Necessary: A permit ensures the work is done to code and is inspected by a third party, guaranteeing the safety of the installation. Without a permit, you may have issues with your home insurance, and it could be a red flag during a future home sale.
- The Electrician’s Role: A reputable electrician from T.A.P. Electric will handle the entire permitting and inspection process for you. This is figured into the quote.
5. Considering Additional Costs
- The price of the panel itself is only one part of the total cost. Be prepared for other potential expenses.
- Labor: This is typically the largest component of the cost.
- Additional Work: Older wiring (especially aluminum or knob-and-tube) or a degraded service mast and meter socket may need to be replaced, which will add to the total cost.
- Advanced Breakers: Modern code often requires the installation of AFCI and GFCI breakers for certain circuits, which are more expensive than standard breakers.
- Permit Fees: The cost of the permit itself varies by municipality but is a necessary part of the project.
